12V RV Air Conditioner – 10000 BTU Low Profile RV Rooftop AC

12V RV Air Conditioner – 10,000 BTU Lowprofile Rooftop Air Conditioner Fast Cooling for RV, Motorhome, Trailer, Trucks, Van, Camper, Tractor

Gallery
Description

Description

User Manual	Download
Refrigerant	R32
Cooling Capacity	10,000 BTU
EER(Energy Efficiency Ratio)	12
Airflow	270 CFM
Roof Opening Size	14 x 14 inches
Mounting Style	Horizontal (flat) installation only

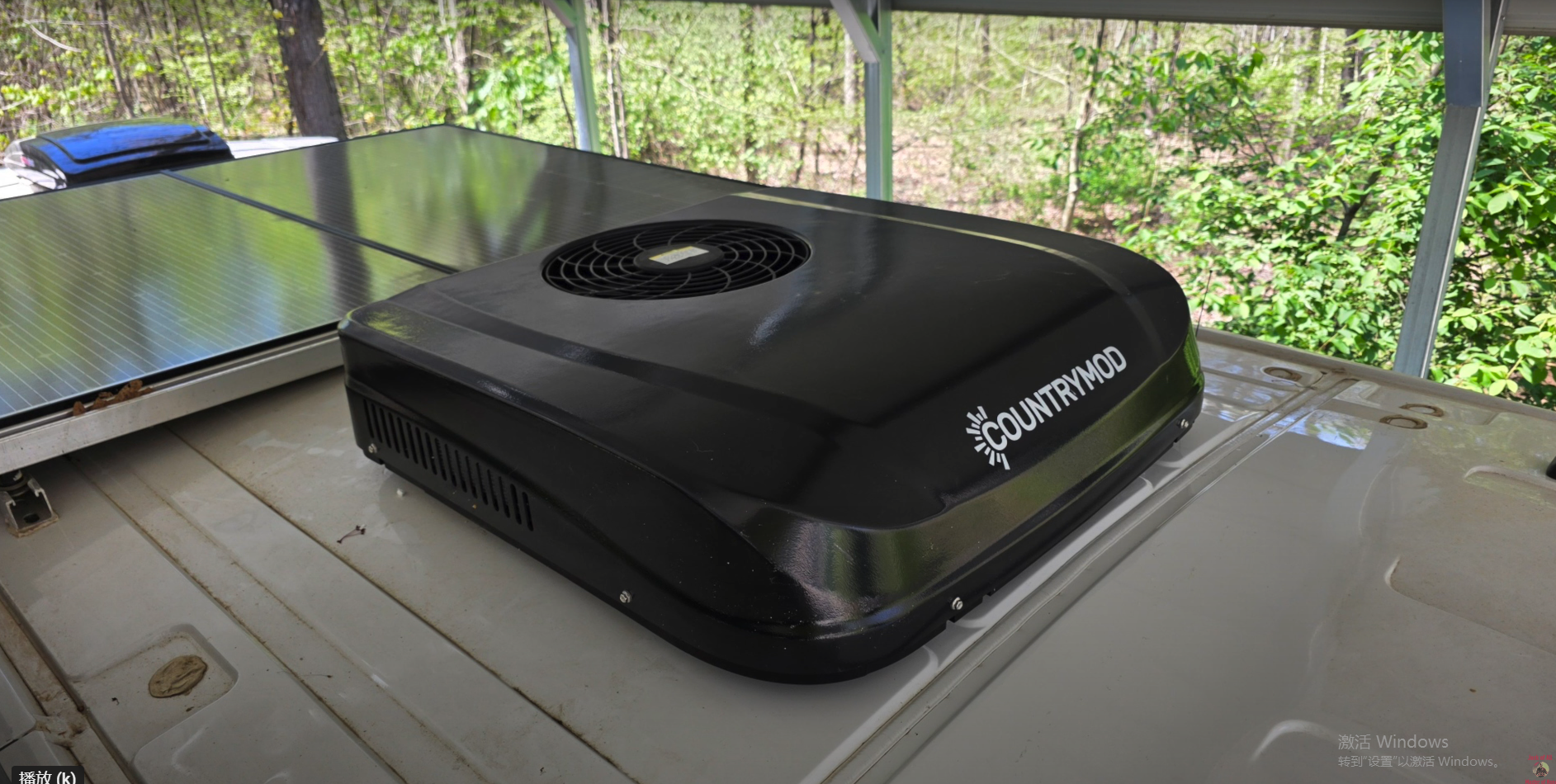

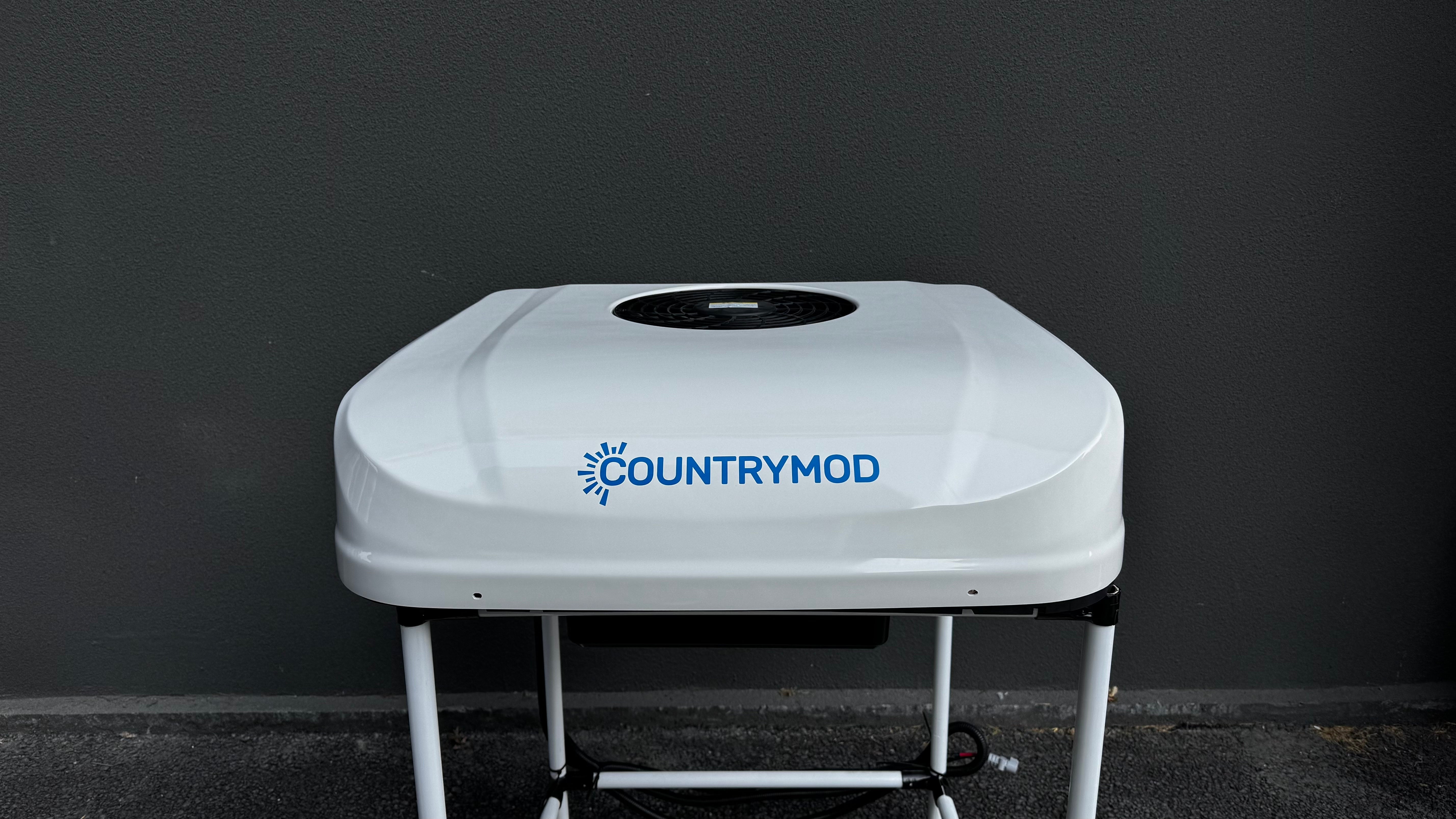

Rooftop Unit (Outdoor Unit) – Mounted on RV Roof	Dimensions: 31.7" L × 31.7" W × 7.1" H (Metric: 805mm × 805mm × 180mm)

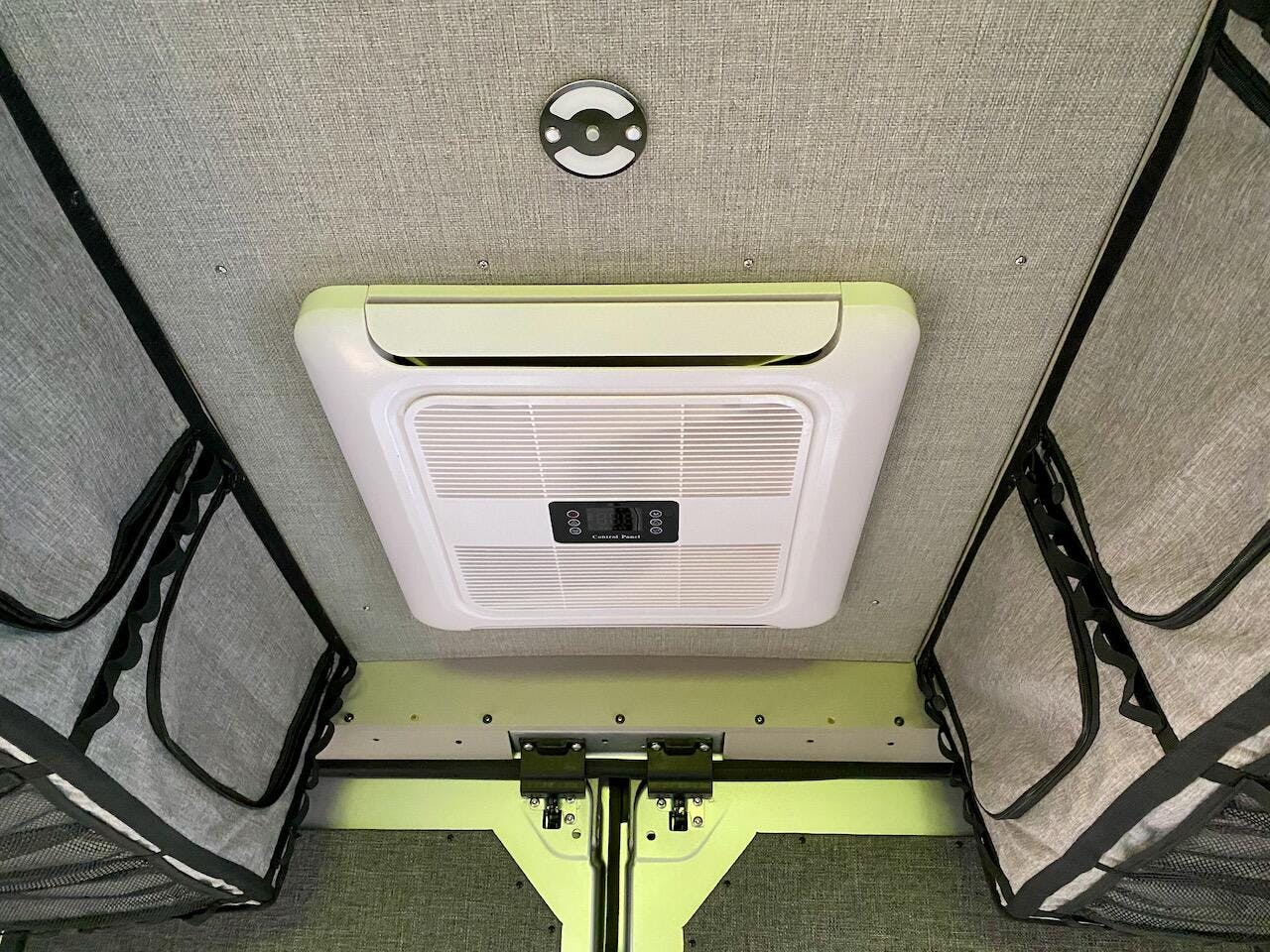

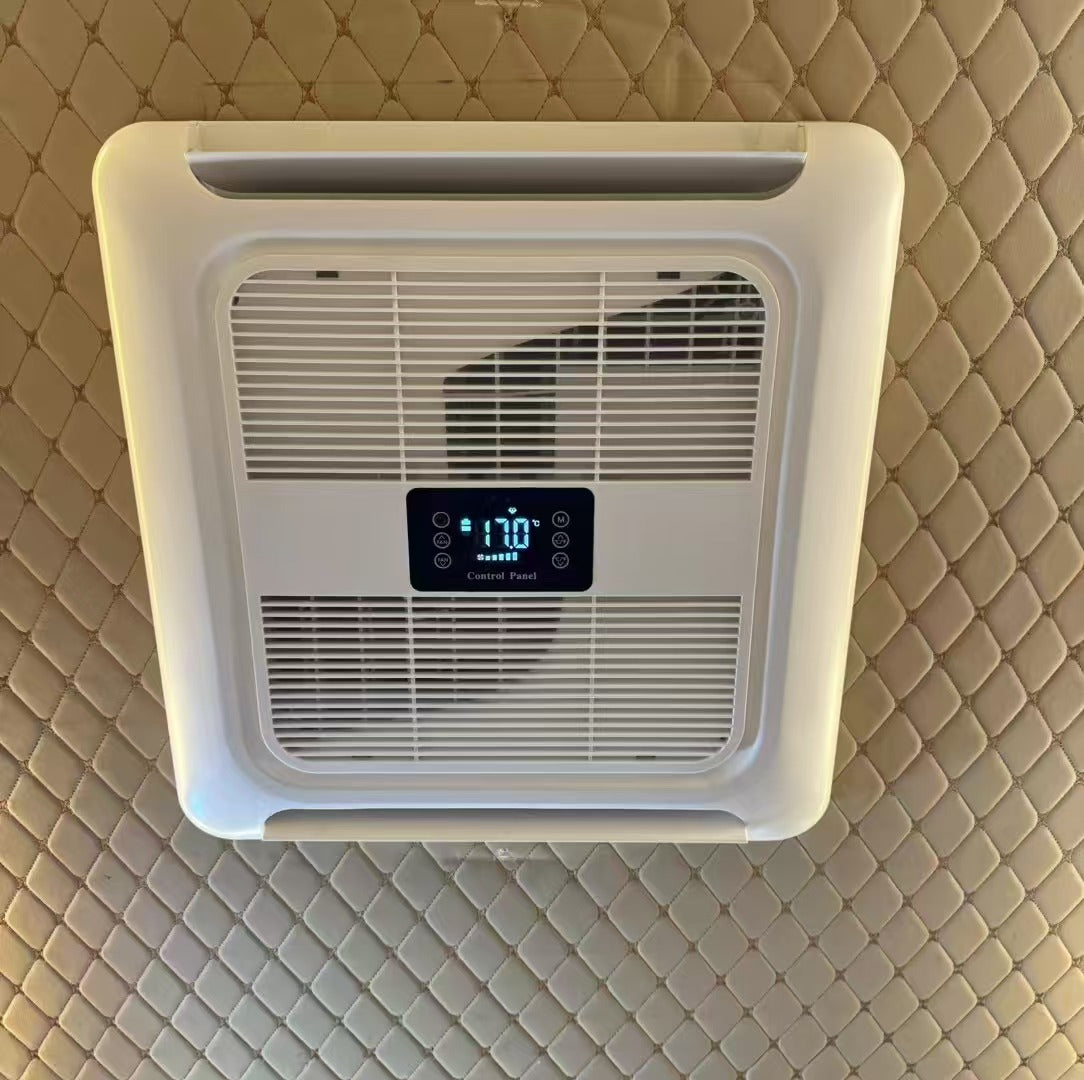

Indoor Unit (Ceiling-Mounted Air Distribution Box)	Dimensions: 20.5" L × 19.7" W × 2" H (Metric: 520mm × 500mm × 50mm)
Weight	54 lbs
Power Cable	15ft ( 4500mm)
Noise (Sleep/Eco/Standard/Turbo)	45dB/ 50dB/ 55dB/ 60dB
Adjustable Temperature Range	61°F to 86°F / 16℃ to 30℃
Input Voltage	DC 12V / 24V/ 48V
Current Range(12v/24v)	20-66A / 10-36A / 7-25A
Maximum Overcurrent Protection(12v/24v)	100A /80A /50A

12V RV Air Conditioner – 10,000 BTU Lowprofile Rooftop Air Conditioner Fast Cooling for RV, Motorhome, Trailer, Trucks, Van, Camper, Tractor

$959.00

$1,299.00$340.00 OFF

U.S. Warehouse Shipping

No import duties or hidden fees

Free Delivery (2–5 business days)

Select voltage specifications

12V 12V
24V 24V
48V 48V

Select color

White
Black

Select after sale

30-Day Return & 1-Year Warranty 30-Day Return & 1-Year Warranty

Product variants

Quantity

Description

User Manual	Download
Refrigerant	R32
Cooling Capacity	10,000 BTU
EER(Energy Efficiency Ratio)	12
Airflow	270 CFM
Roof Opening Size	14 x 14 inches
Mounting Style	Horizontal (flat) installation only
Rooftop Unit (Outdoor Unit) – Mounted on RV Roof	Dimensions: 31.7" L × 31.7" W × 7.1" H (Metric: 805mm × 805mm × 180mm)
Indoor Unit (Ceiling-Mounted Air Distribution Box)	Dimensions: 20.5" L × 19.7" W × 2" H (Metric: 520mm × 500mm × 50mm)
Weight	54 lbs
Power Cable	15ft ( 4500mm)
Noise (Sleep/Eco/Standard/Turbo)	45dB/ 50dB/ 55dB/ 60dB
Adjustable Temperature Range	61°F to 86°F / 16℃ to 30℃
Input Voltage	DC 12V / 24V/ 48V
Current Range(12v/24v)	20-66A / 10-36A / 7-25A
Maximum Overcurrent Protection(12v/24v)	100A /80A /50A

12V RV Air Conditioner – 10,000 BTU Lowprofile Rooftop Air Conditioner Fast Cooling for RV, Motorhome, Trailer, Trucks, Van, Camper, Tractor

$959.00

$1,299.00$340.00 OFF

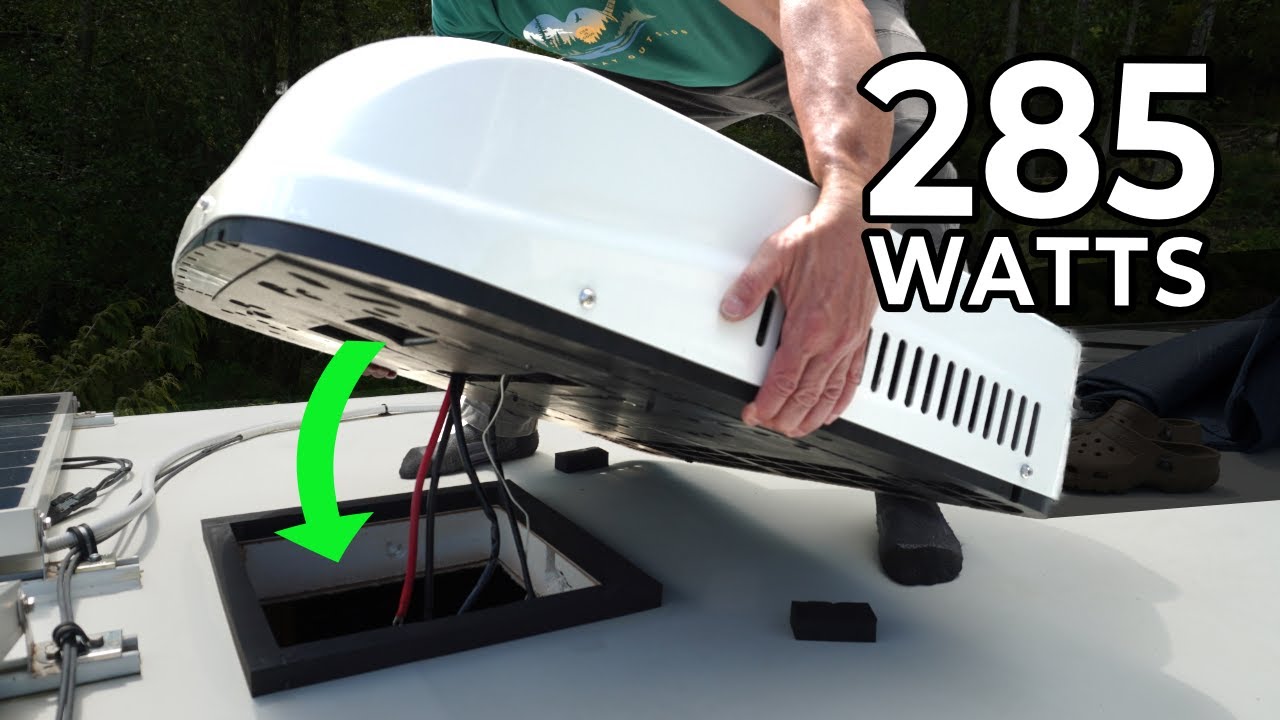

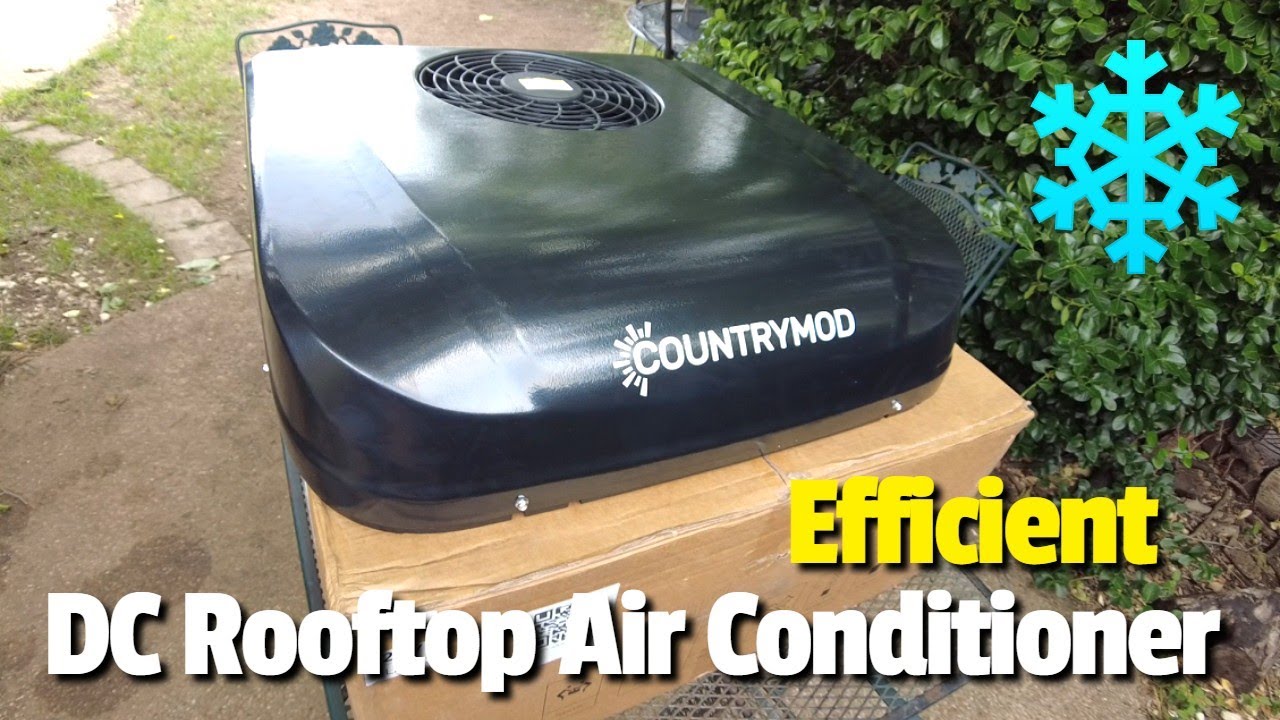

See What RV Experts Are Saying

Inverter RV Air Conditioner

Why Choose it

The inverter compressor operates smoothly without constant cycling on and off, leading to lower energy consumption and higher efficiency. This steady operation helps maintain a stable indoor temperature, providing a consistently comfortable environment inside your vehicle.

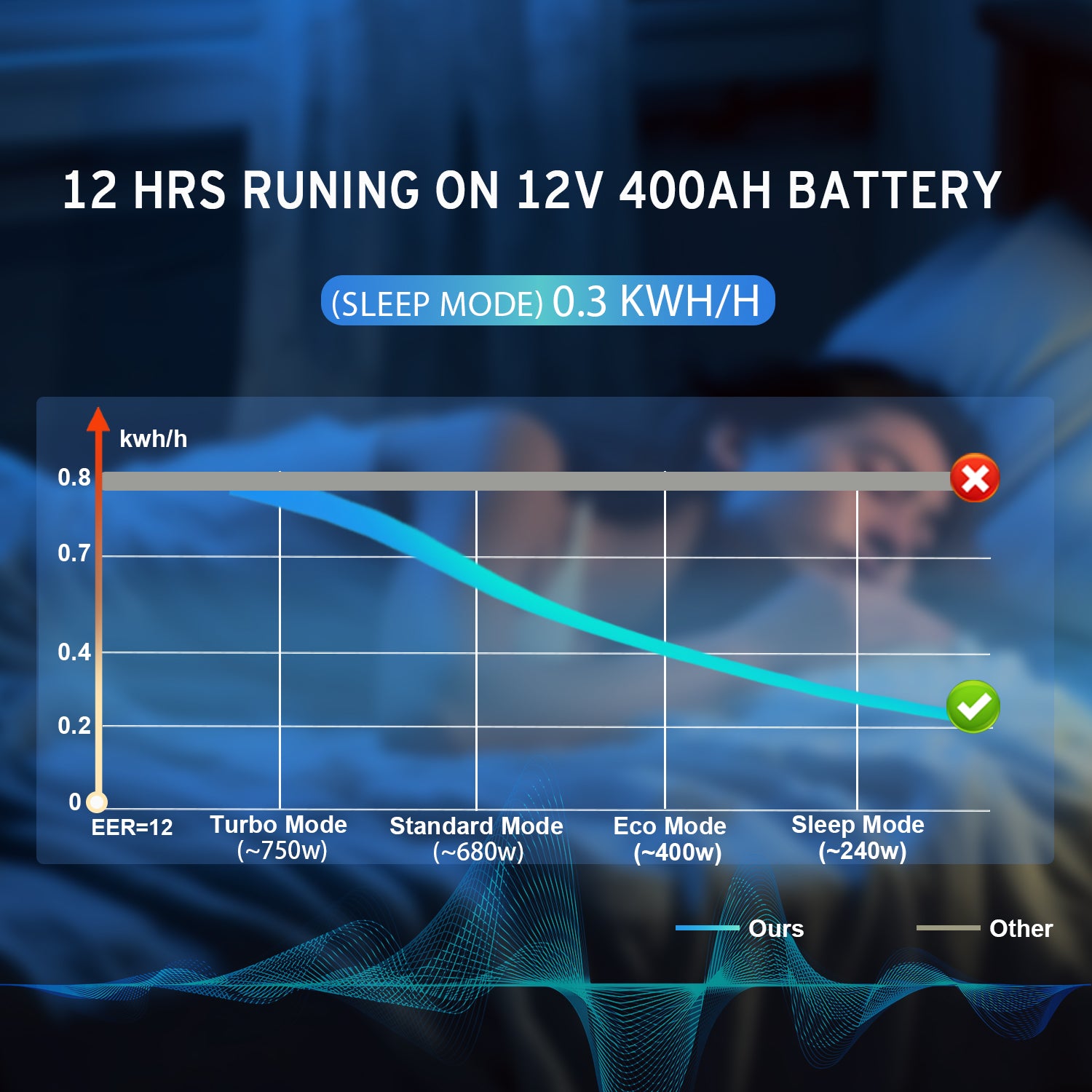

Energy Efficient

EER=12

Up to 12 hours of cooling with 12V 400Ah battery

Low power consumption

Consumes just 0.3 kWh per hour

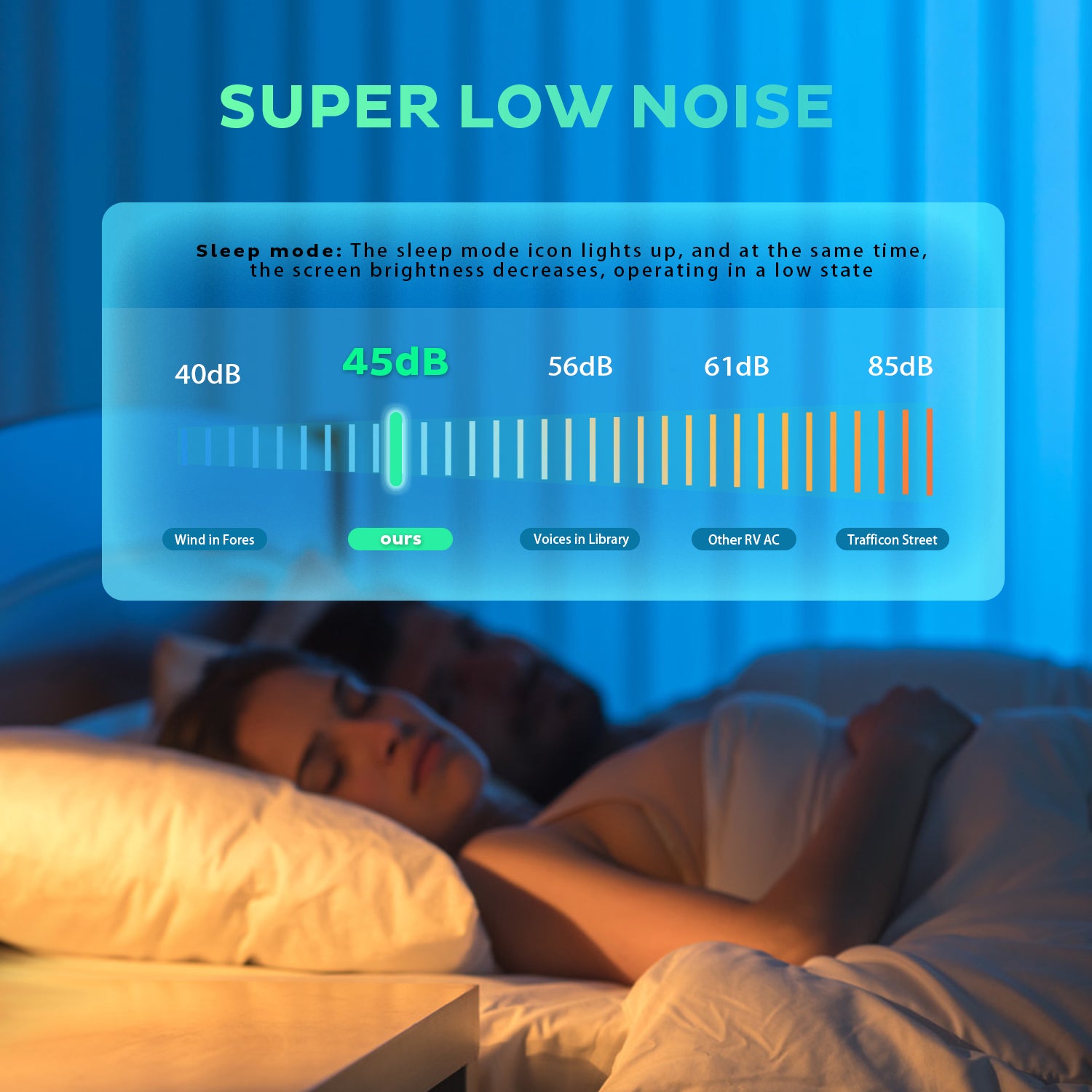

Quiet comfort at night

No Sleep Disruption

Whisper-quiet 45dB sleep mode

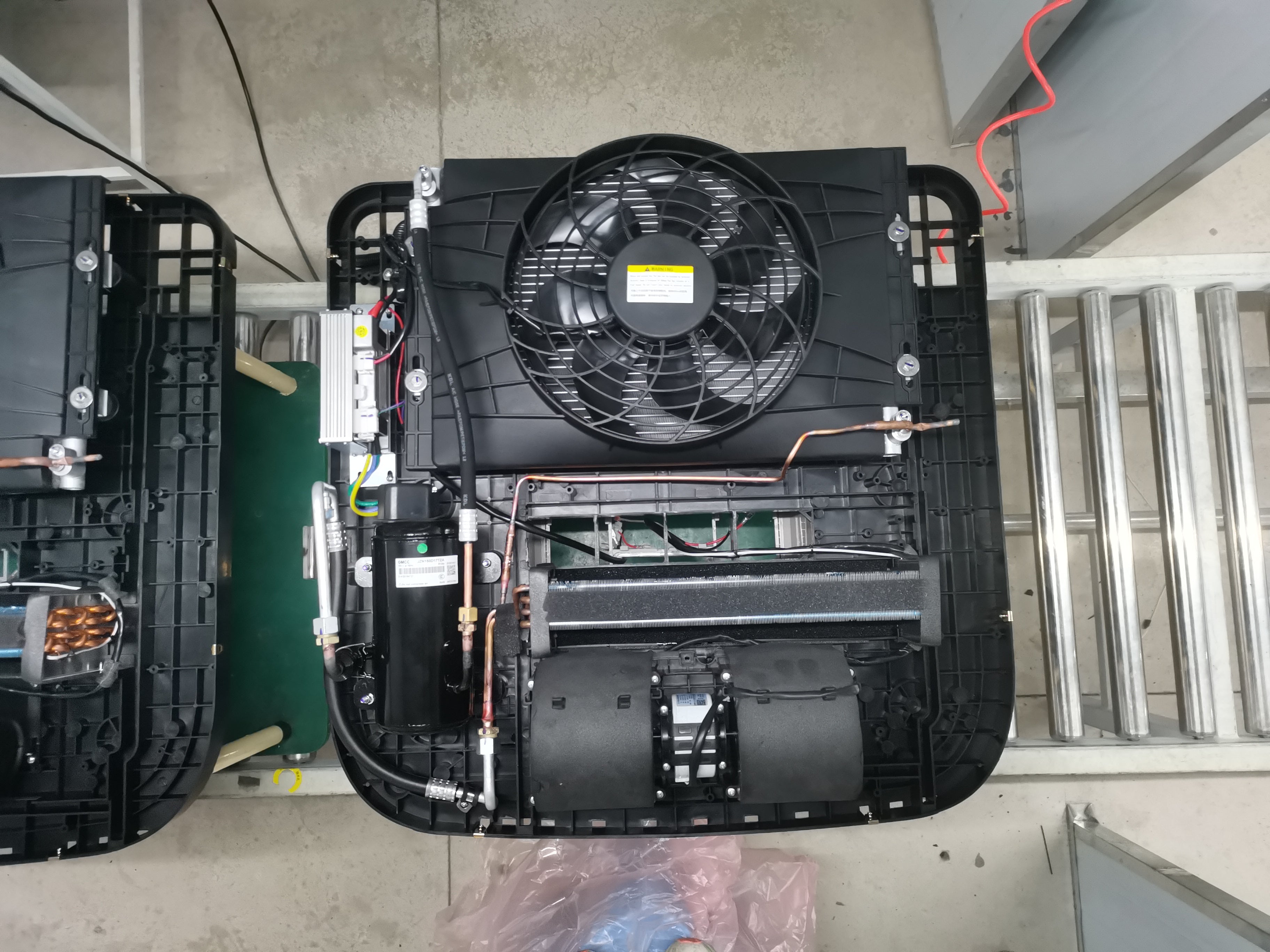

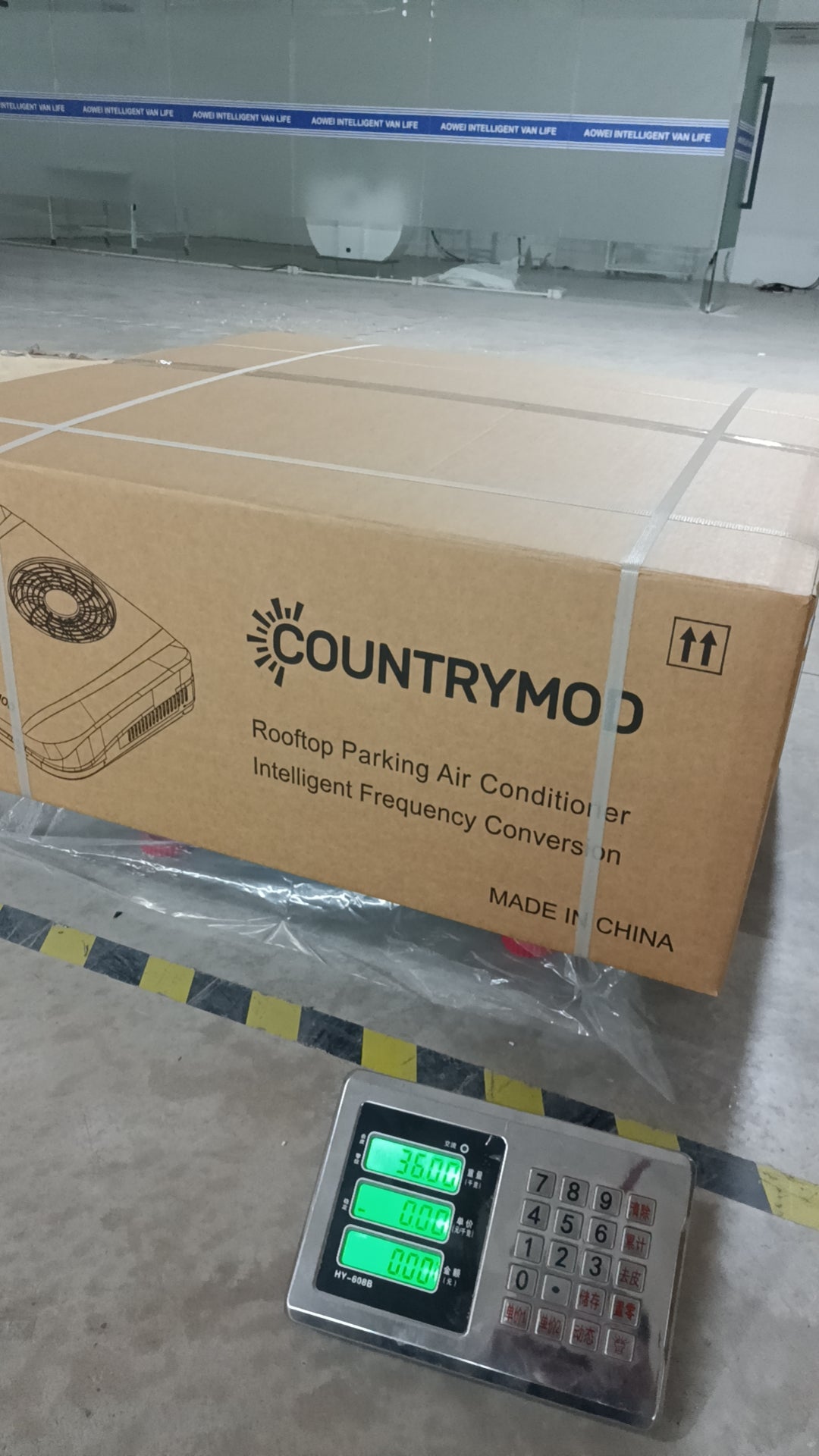

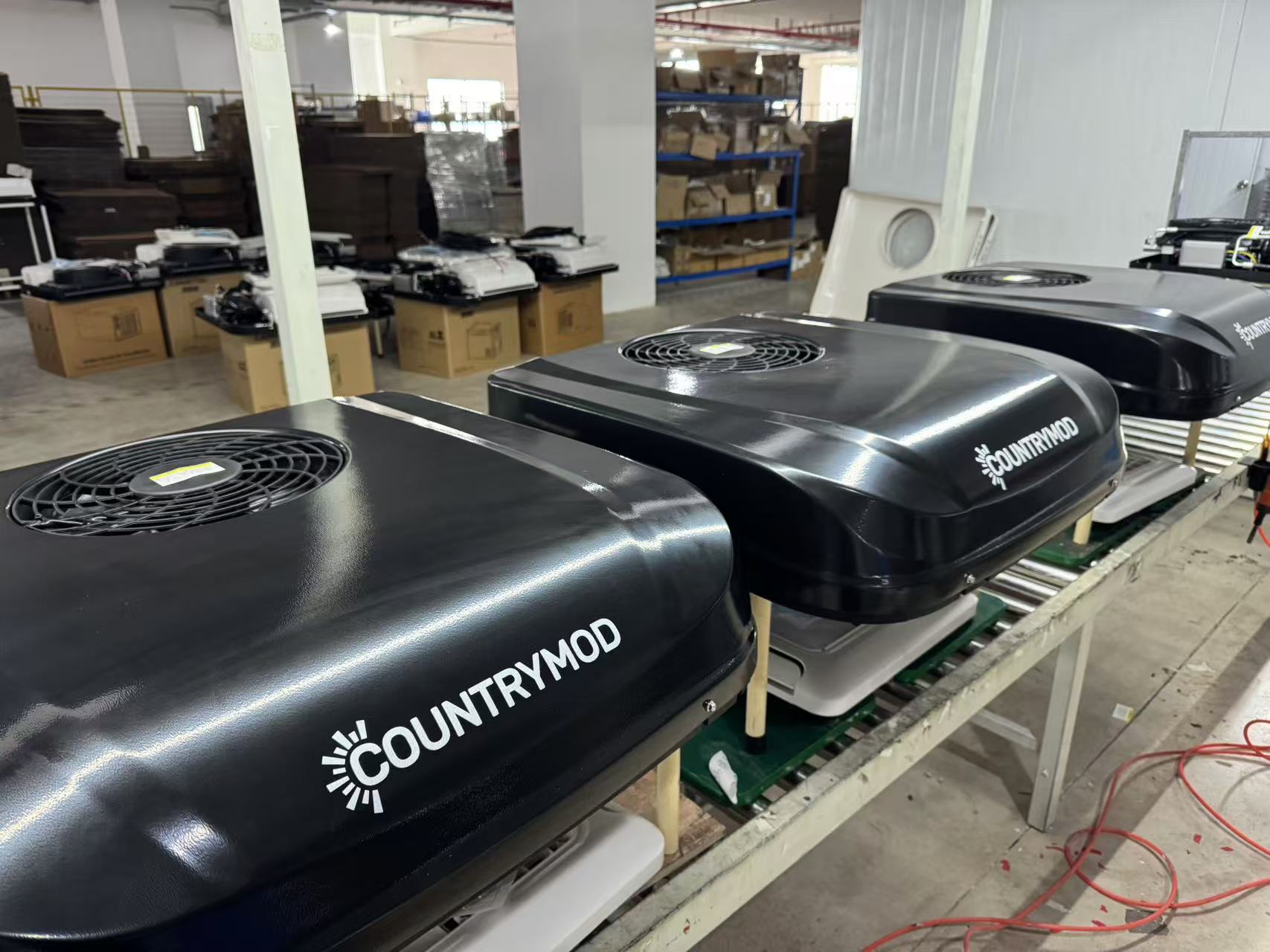

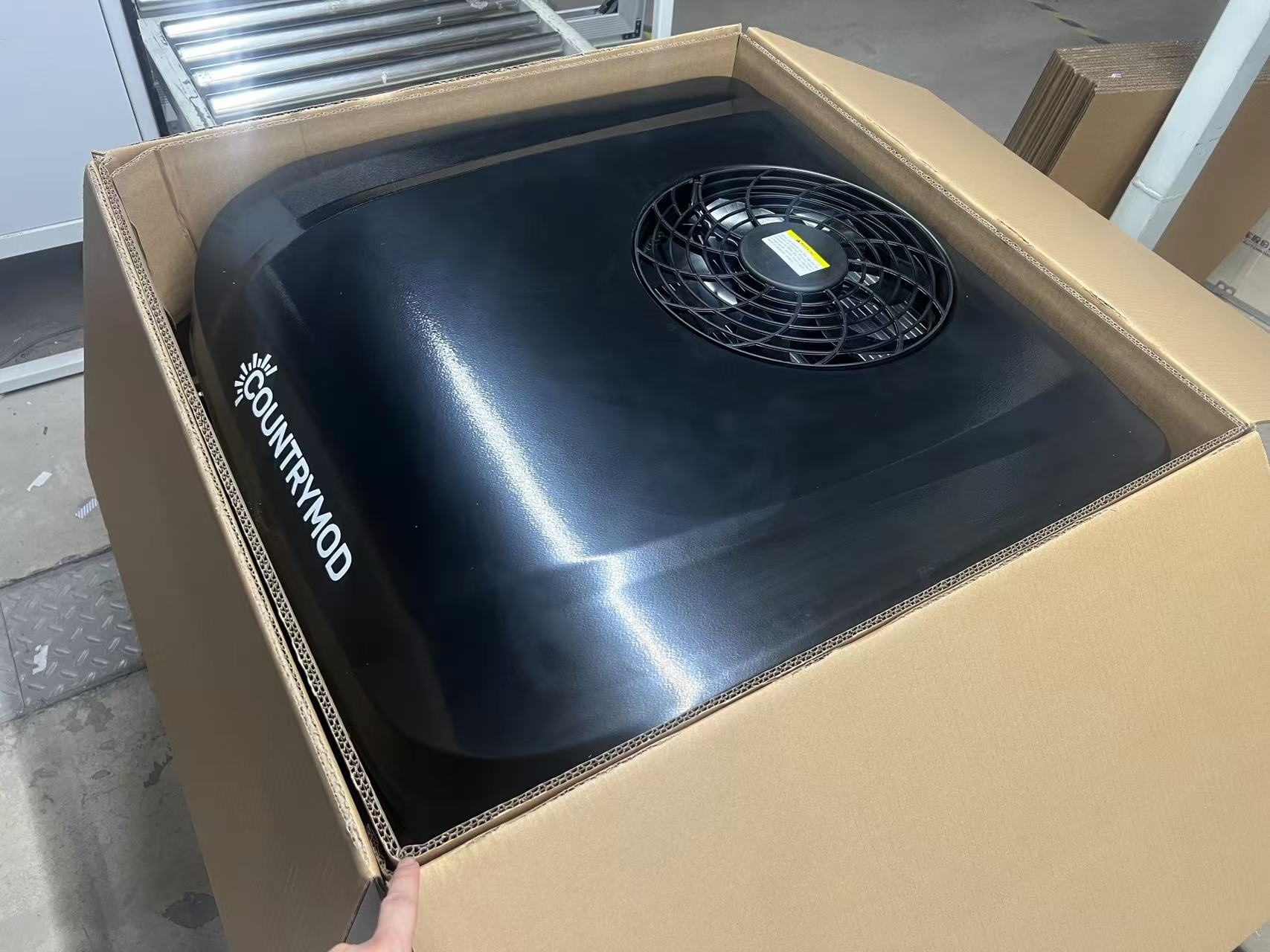

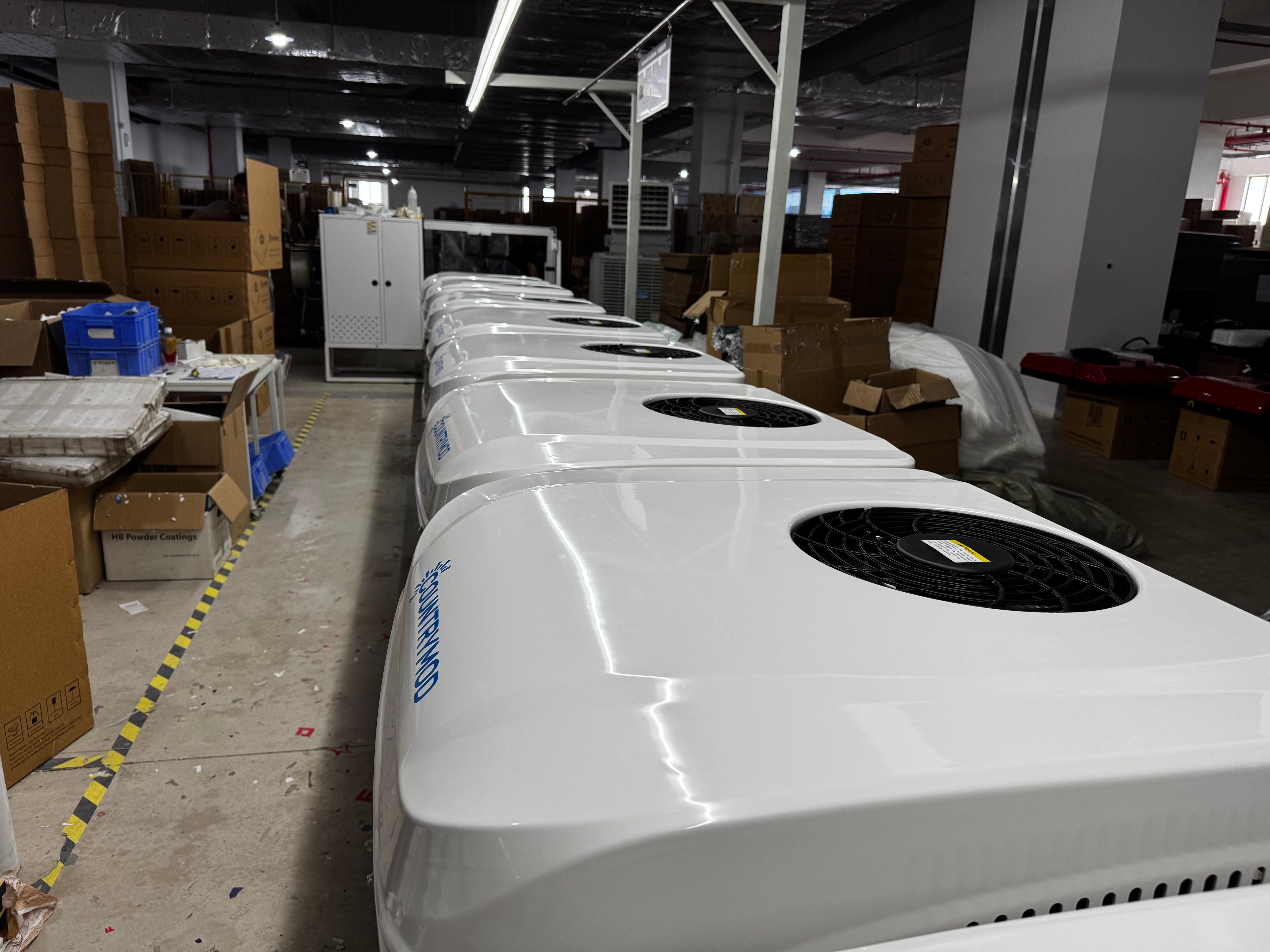

Where We Build Your Orders & Customer Feedback

FAQs

What's the indoor unit color for Black A/C Unit

There are both white inside plinth for the black Unit and white Unit

If it can be used while driving or is it only to be used while parked?

Absolutely — the unit is designed to run whether you're driving or parked, making it perfect for off-grid travel or long road trips.

Can these A/C units be mounted vertically rather than horizontally?

Rooftop A/C units are designed for horizontal (flat) installation only and cannot be mounted vertically. Installing them vertically may affect performance and could lead to operational issues.

What is the wire size comes with the unit？

12v unit wire size is 5AWG, 15ft，

24v unit wire size is 8AWG, 15ft，

48v unit wire size is 9AWG, 15ft

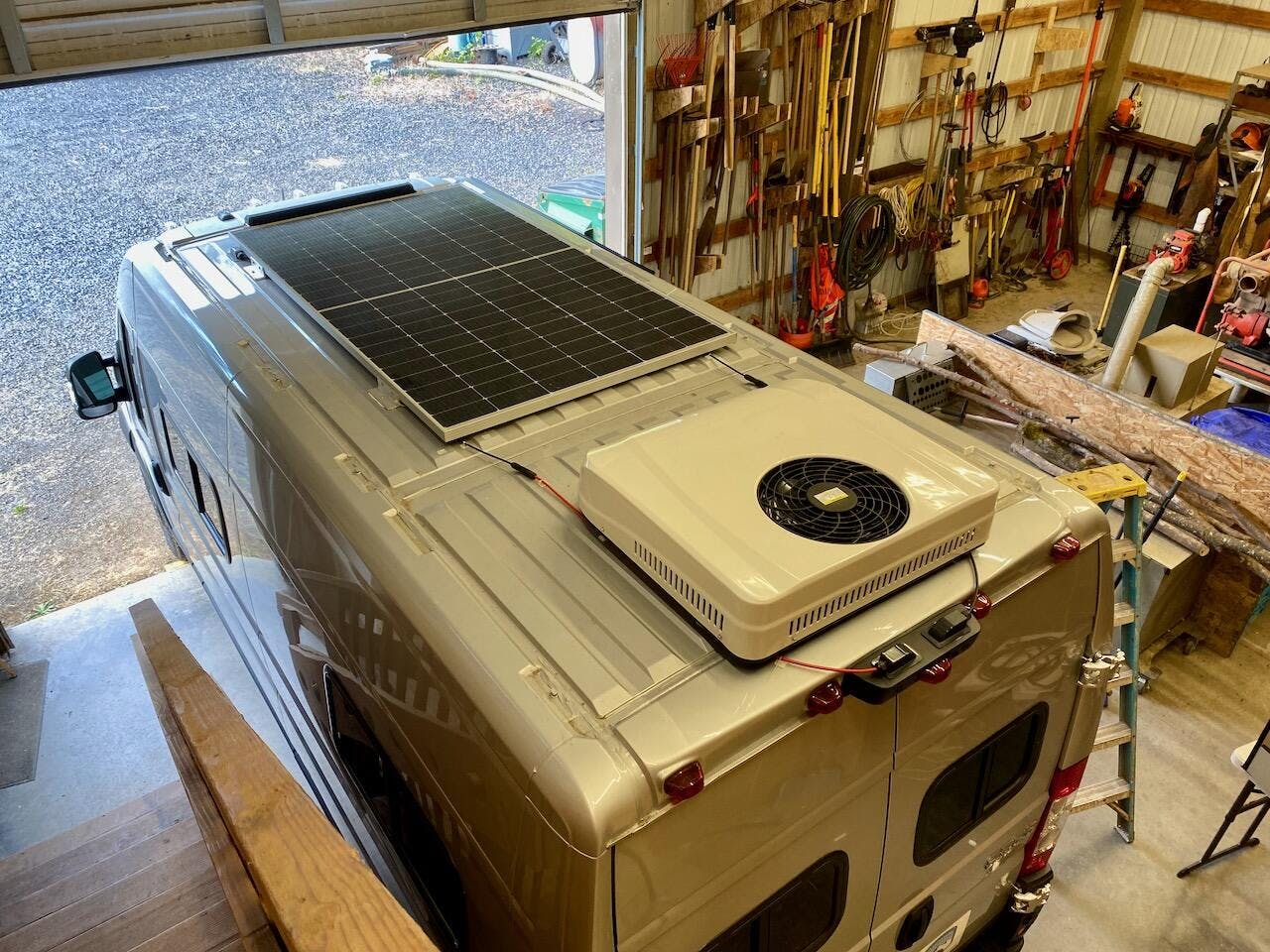

This is truly a game changing air conditioner

This is truly a game changing air conditioner for van life!

Very nice A/C works awesome very pleased easy Install fit 14x14 hole perfect

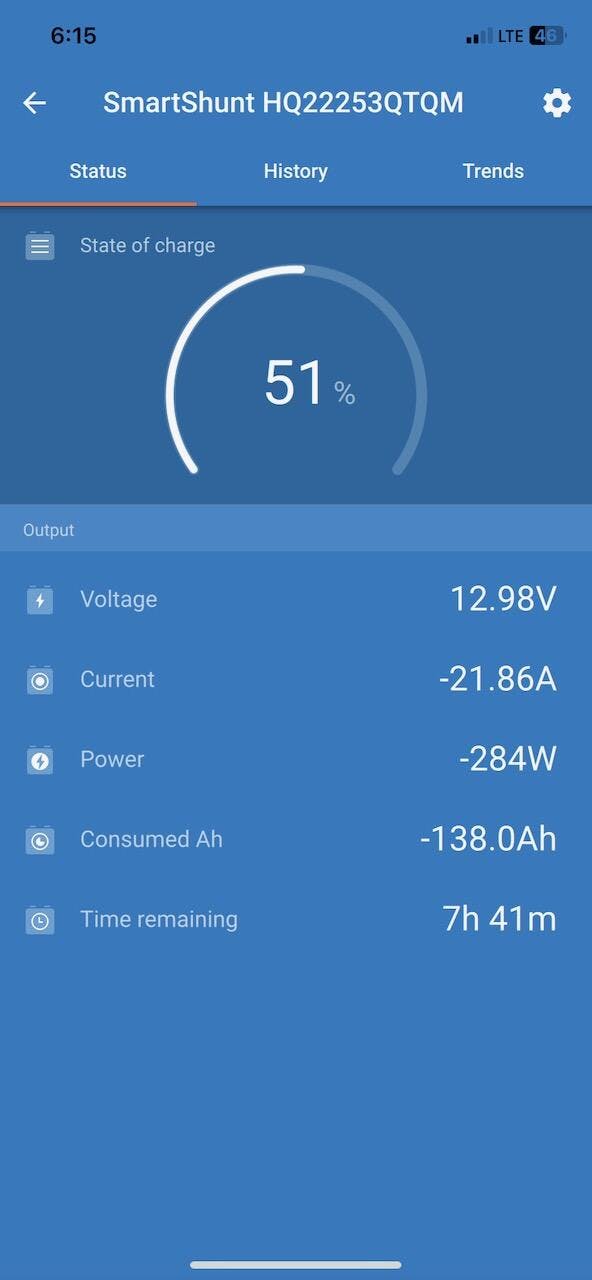

Very nice A/C works awesome very pleased easy Install fit 14x14 hole perfect. I tested it with 3 100amphr batteries It ran for 7 hrs on high and i shut it down it was still going.

Very easy install

Very easy install. Works great on my Camp Bus! Now I have off the grid AC.

Super happy with my A/C unit! Easy install and cools great

Super happy with my A/C unit! Easy install and cools great.

So far it's been great, but I wish it had a HP heating feature

So far it's been great.
My Only negative comments are:

My Motor-home roof was a bit over 6 inches so I had to fabricate a new extension duct for the cold side. No big deal, I am mechanically inclined.

I needed to purchase 9 inch studs since your studs were too short. No big deal.
With the thicker roof I had to cut the tie-raps and reroute the controller wires. They could be a bit longer by maybe 2 inches. I barely made it.

I wish you had a heat pump feature on this unit. Heating in the Fall and spring is very important.

I must say, all in all I am very happy with this purchase. I bought yours due to the quality and the extended warranty I got. But if I had to do it again, I would have bought someone else unit that had a Heat Pump feature. Again, I am happy but sad I did not think more of the heating feature needed.

All in all the install went smooth and its running well.

Thank you so much for your detailed feedback!
We’re sorry for the extra work caused by the roof thickness — our current kit is designed for 5–9 cm roofs, Since RV roofs vary, for thinner roofs it may require adding some spacers or trimming the duct, and for roofs thicker than 9 cm, customers may need to extend the duct and use longer studs. We are sorry this created extra work for you.but we’ll work with the factory on longer studs and ducts for thicker roofs.
We also appreciate your suggestion on heating — a heat pump version is already in testing and should be available by next year.
Glad to hear the unit is running well, and we truly value your support!
