| Refrigerant | R32 |
| Cooling Capacity | 10,000 BTU |
| EER(Energy Efficiency Ratio) | 12 |
| Airflow | 270 CFM |

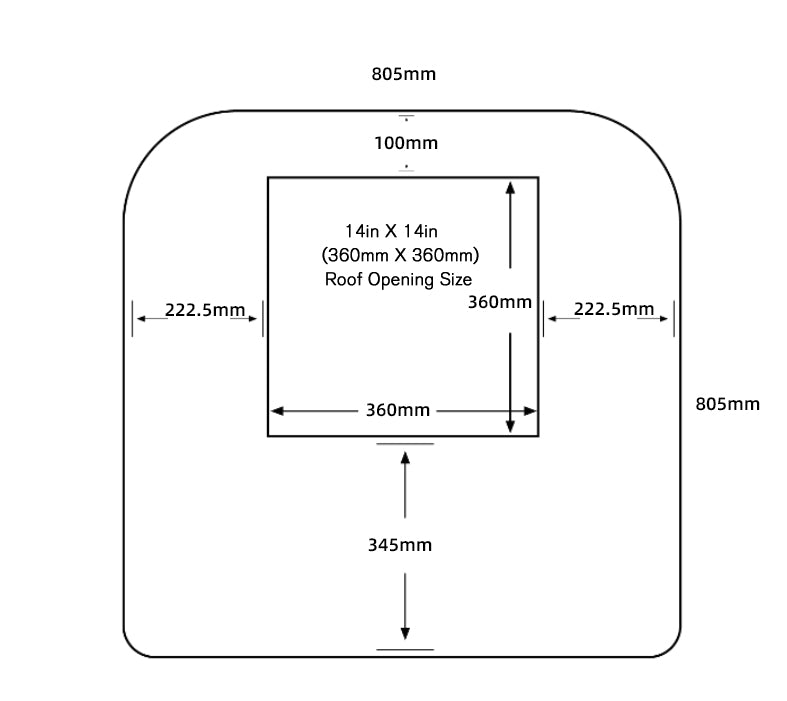

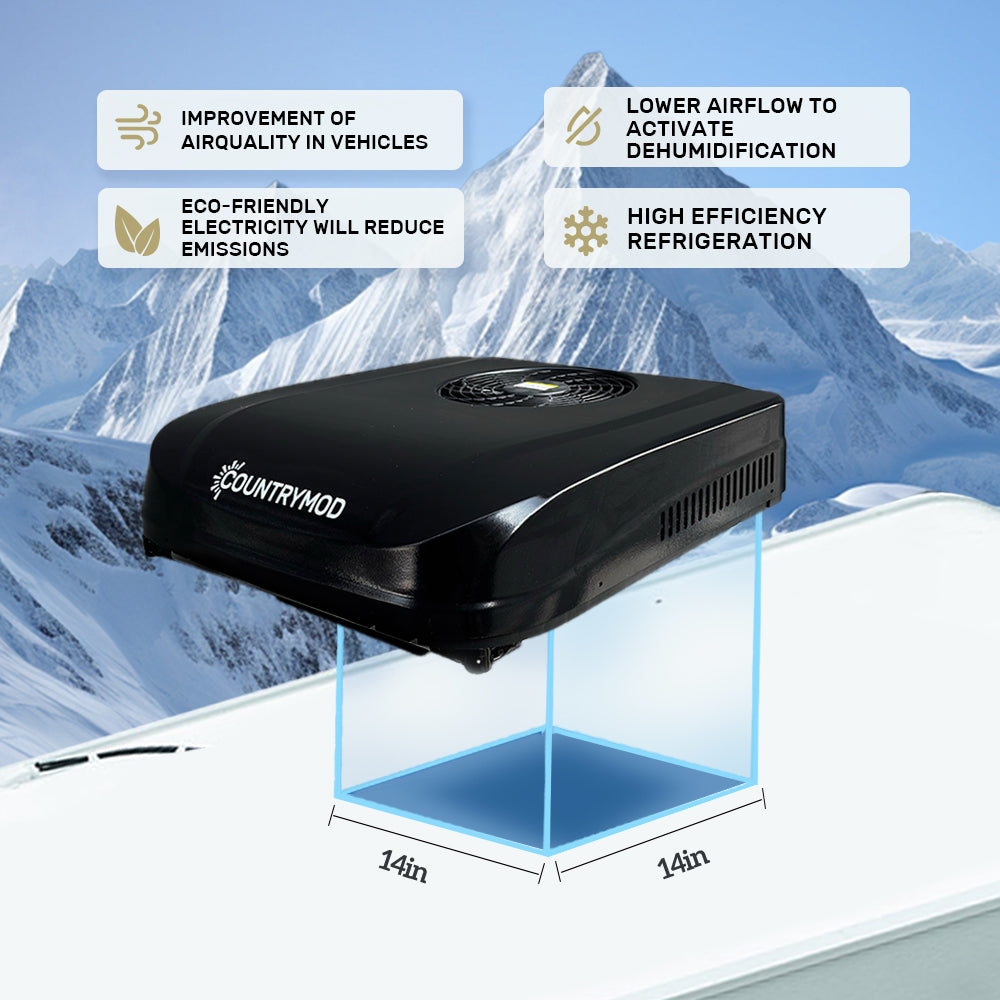

| Roof Opening Size | 14 x 14 inches |
| Mounting Style | Horizontal (flat) installation only |

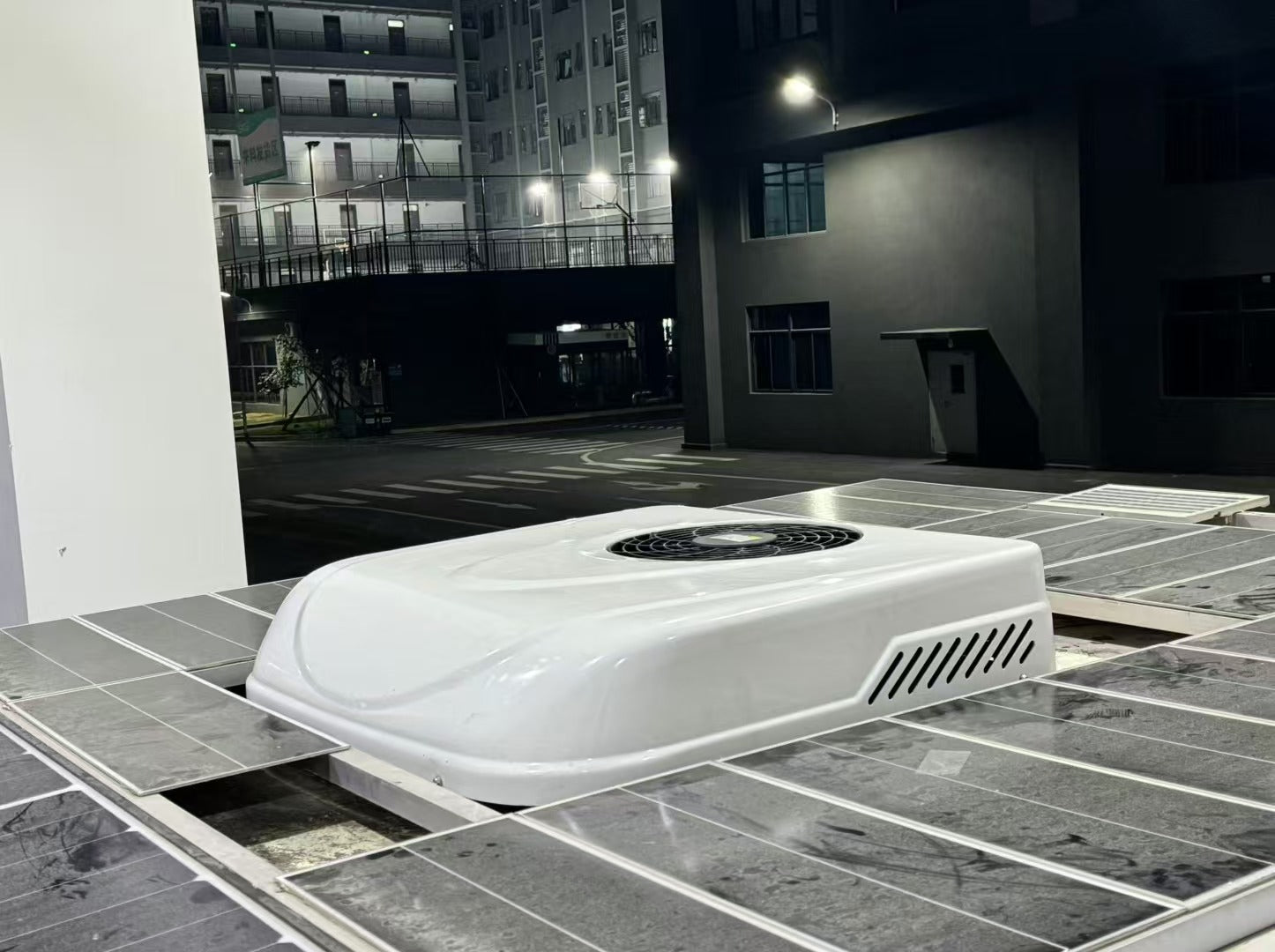

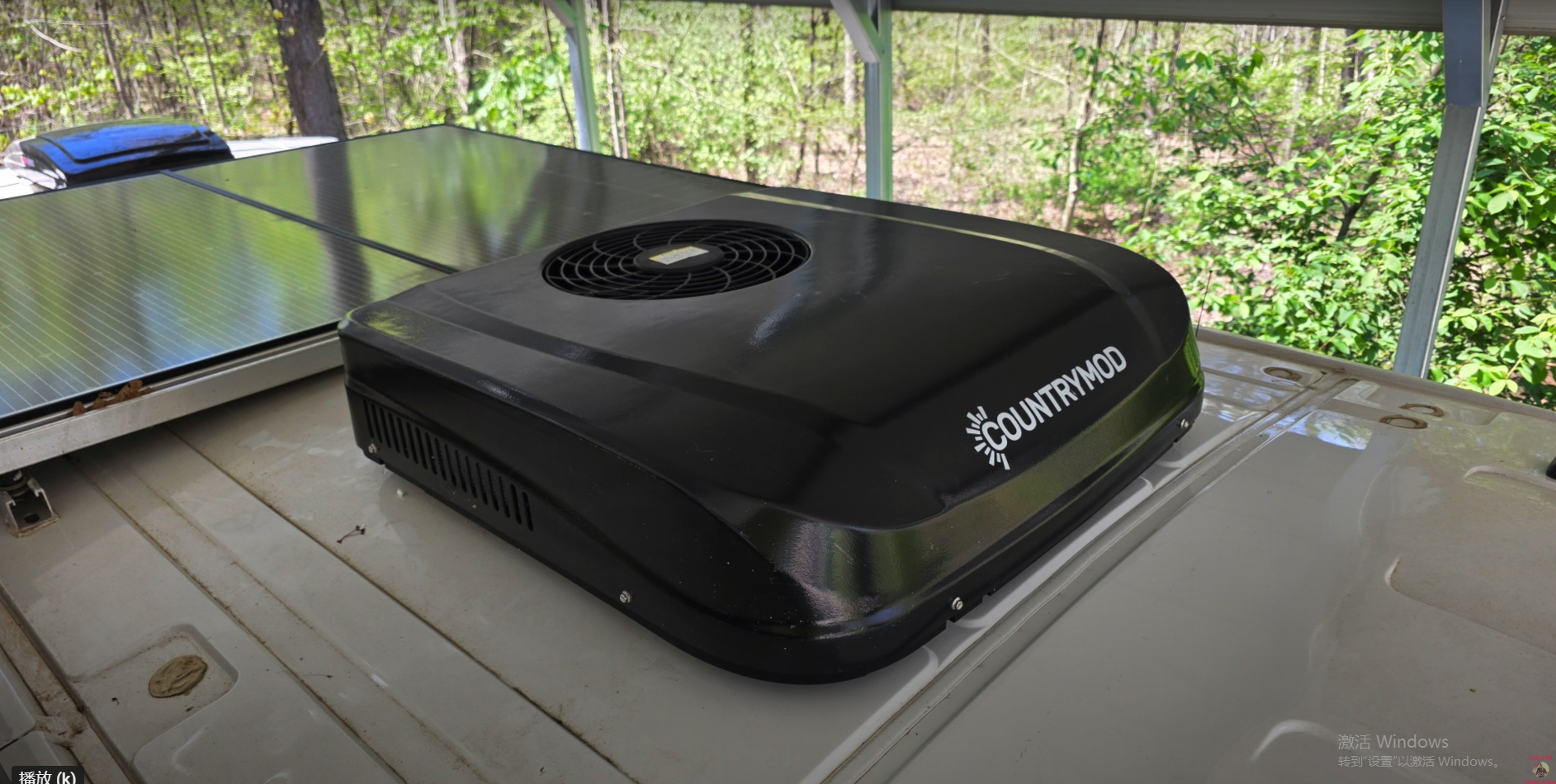

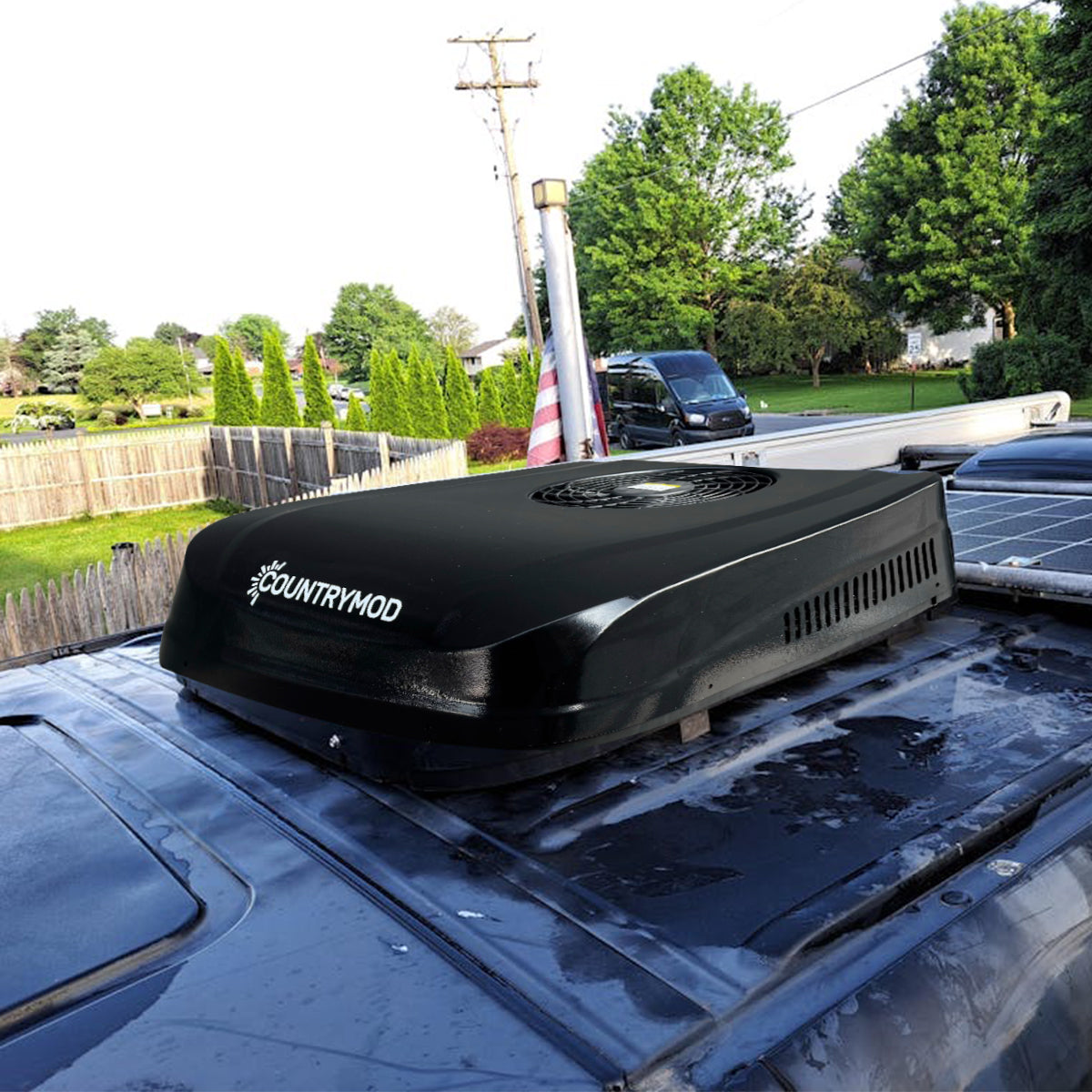

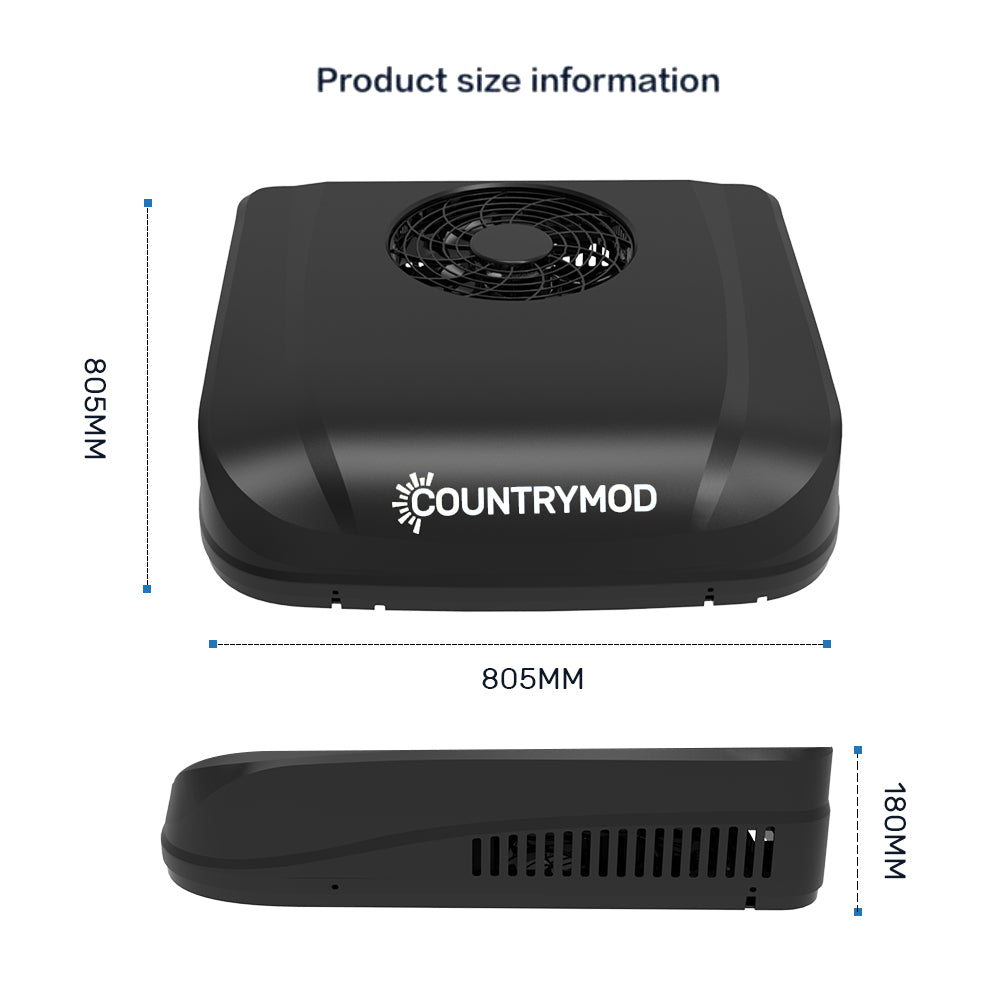

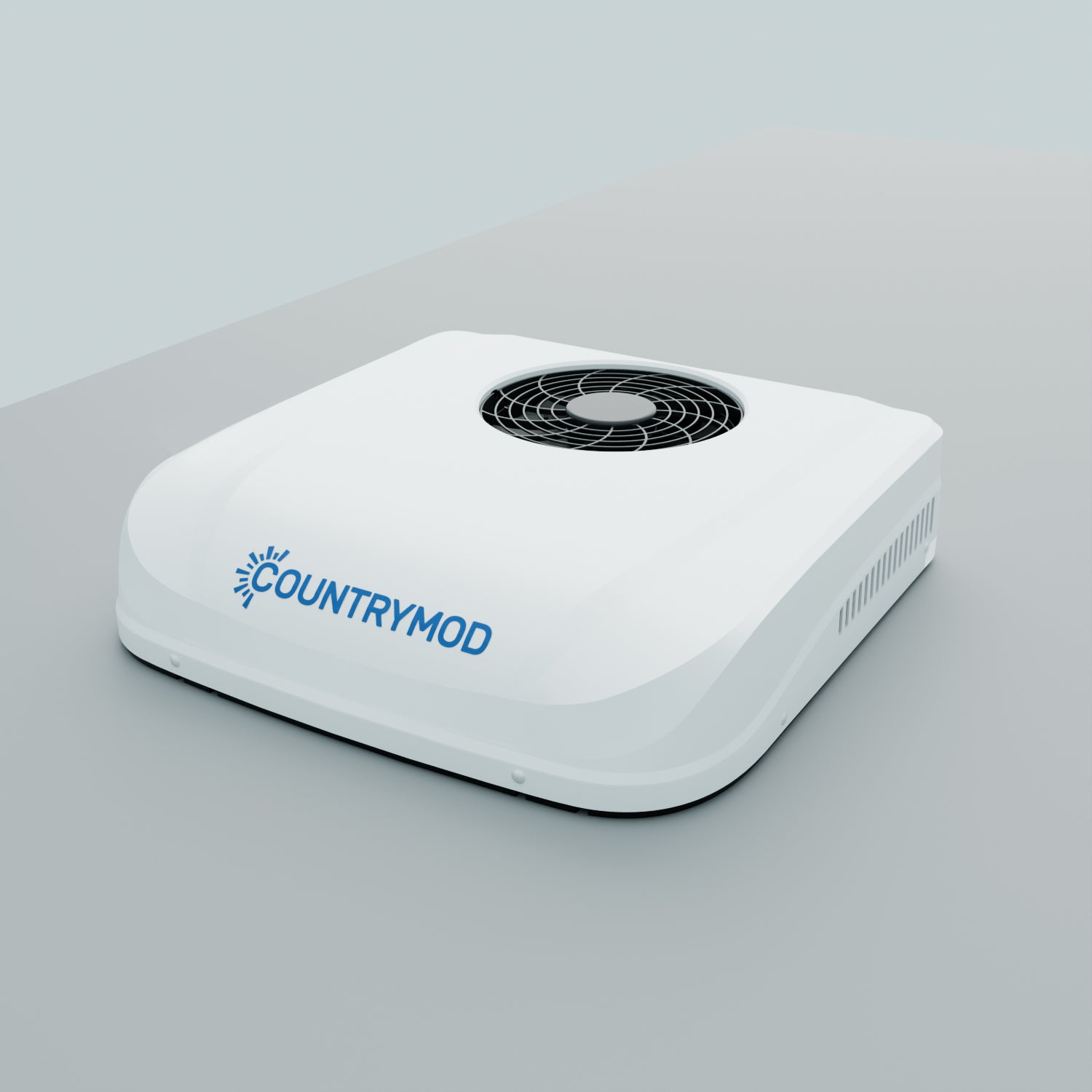

| Rooftop Unit (Outdoor Unit) – Mounted on RV Roof | Dimensions: 31.7" L × 31.7" W × 7.1" H (Metric: 805mm × 805mm × 180mm) |

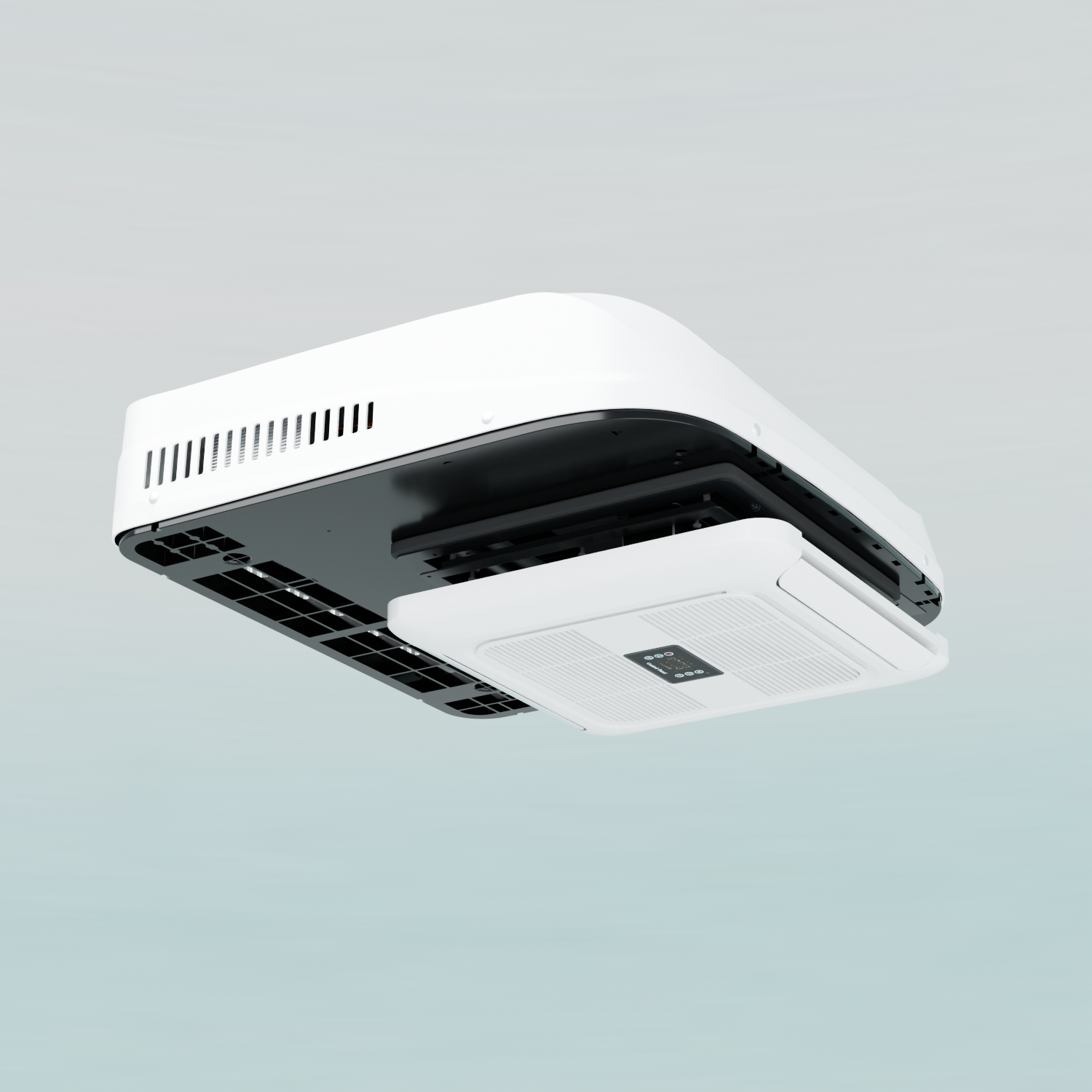

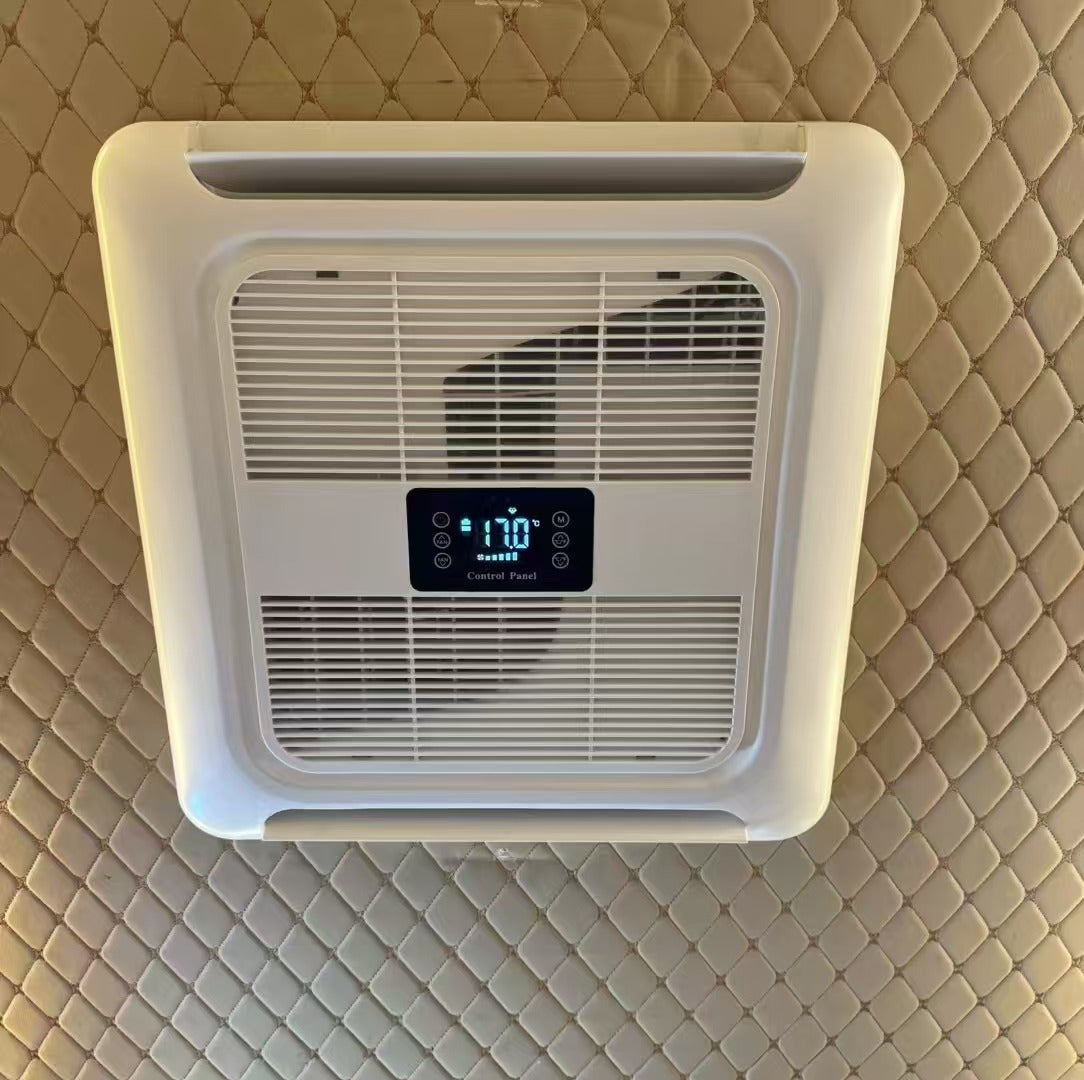

| Indoor Unit (Ceiling-Mounted Air Distribution Box) | Dimensions: 20.5" L × 19.7" W × 2" H (Metric: 520mm × 500mm × 50mm) |
| Weight | 54 lbs |
| Power Cable | 15ft ( 4500mm) |
| Noise (Sleep/Eco/Standard/Turbo) | 45dB/ 50dB/ 55dB/ 60dB |
| Adjustable Temperature Range | 61°F to 86°F / 16℃ to 30℃ |
| Input Voltage | DC 12V / 24V |

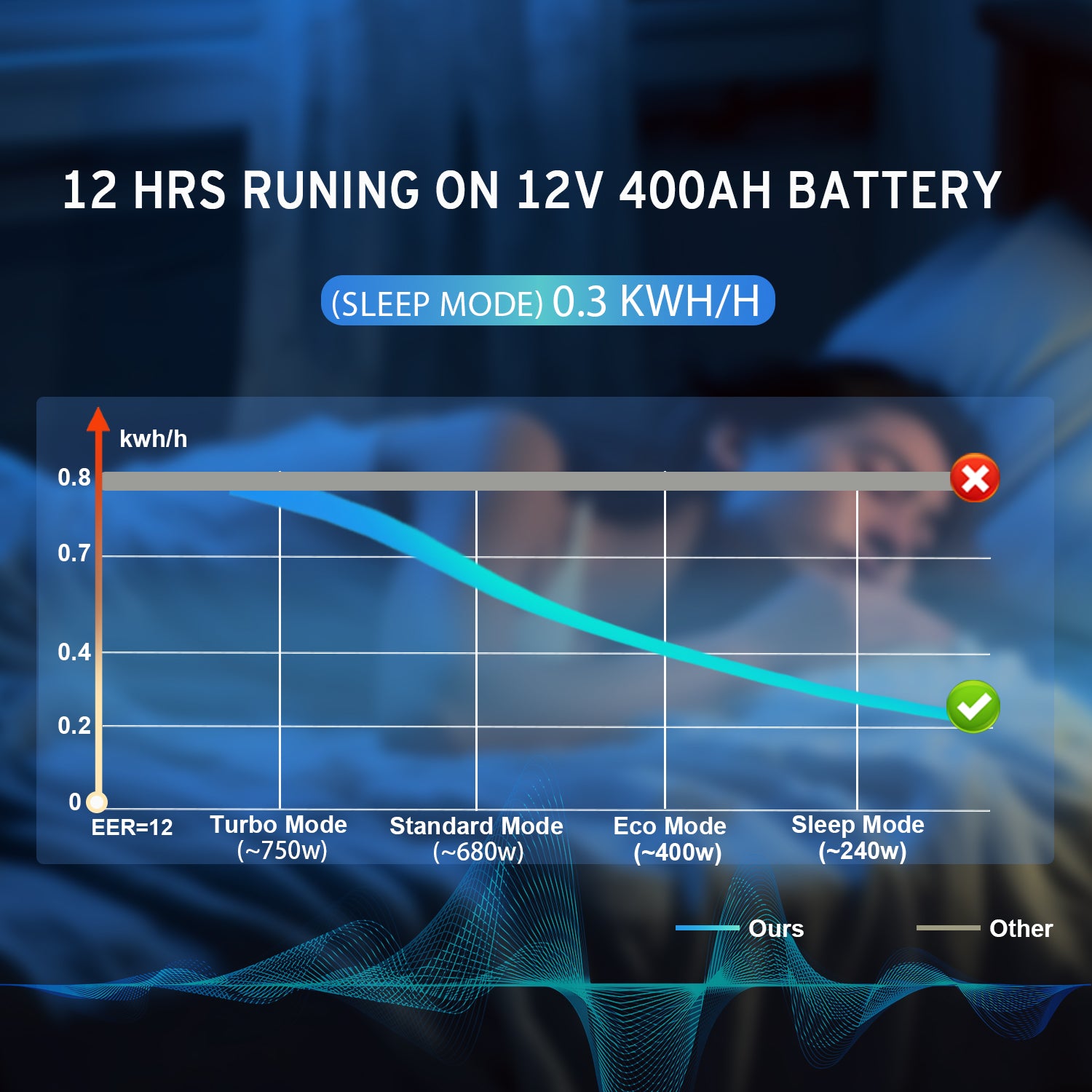

| Current Range(12v/24v) | 20-66A / 10-36A |
| Maximum Overcurrent Protection(12v/24v) | 100A/80A |
