| Item | 12V 460Ah | 12V 630Ah |
|---|---|---|
| User Manual Download | Download(460A) | Download(630A) |
| Nominal Voltage (V) | 12V | 12V |
| Nominal Capacity (Ah) | 460Ah | 630Ah |
| Minimum Capacity (Ah) | 435Ah | 598Ah |
| Charge Cut-off Voltage | 14.6V | 14.6V |
| Standard Charge Current | 25A | 25A |
| Maximum Charge Current | 200A | 200A |
| Discharge Cut-off Voltage | 10V | 10V |
| Standard Discharge Current | 150A | 150A |
| Max Continuous Discharge Current | 300A | 300A |
| Peak Discharge (Short Pulse) | 650A / 185ms | 650A / 185ms |

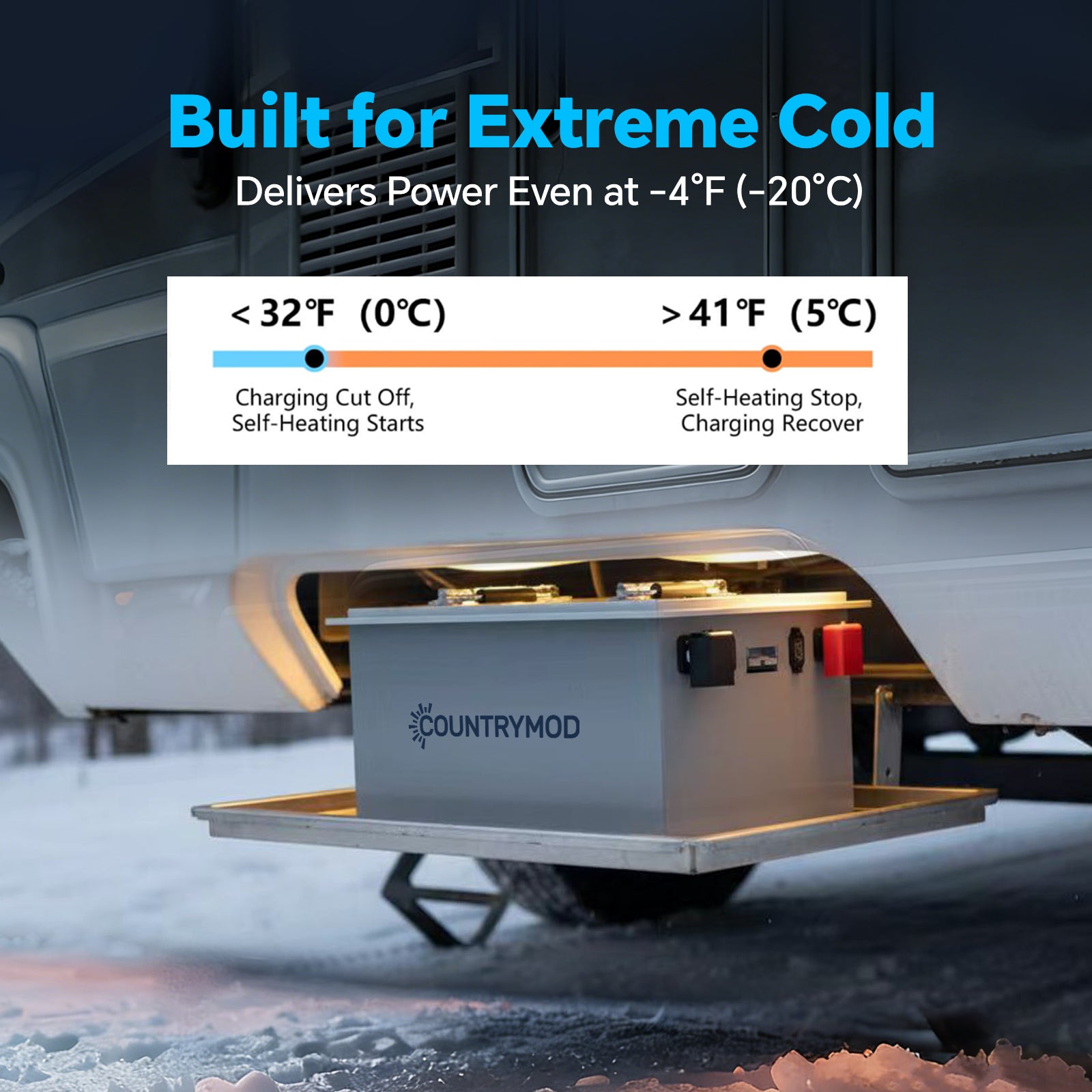

| Operating Temp (Charge) | 0℃ ~ 50℃ | 0℃ ~ 50℃ |
| Operating Temp (Discharge) | -20℃ ~ 65℃ | -20℃ ~ 65℃ |
| Internal Resistance | ≤50 mΩ | ≤50 mΩ |
| Dimensions (mm) |

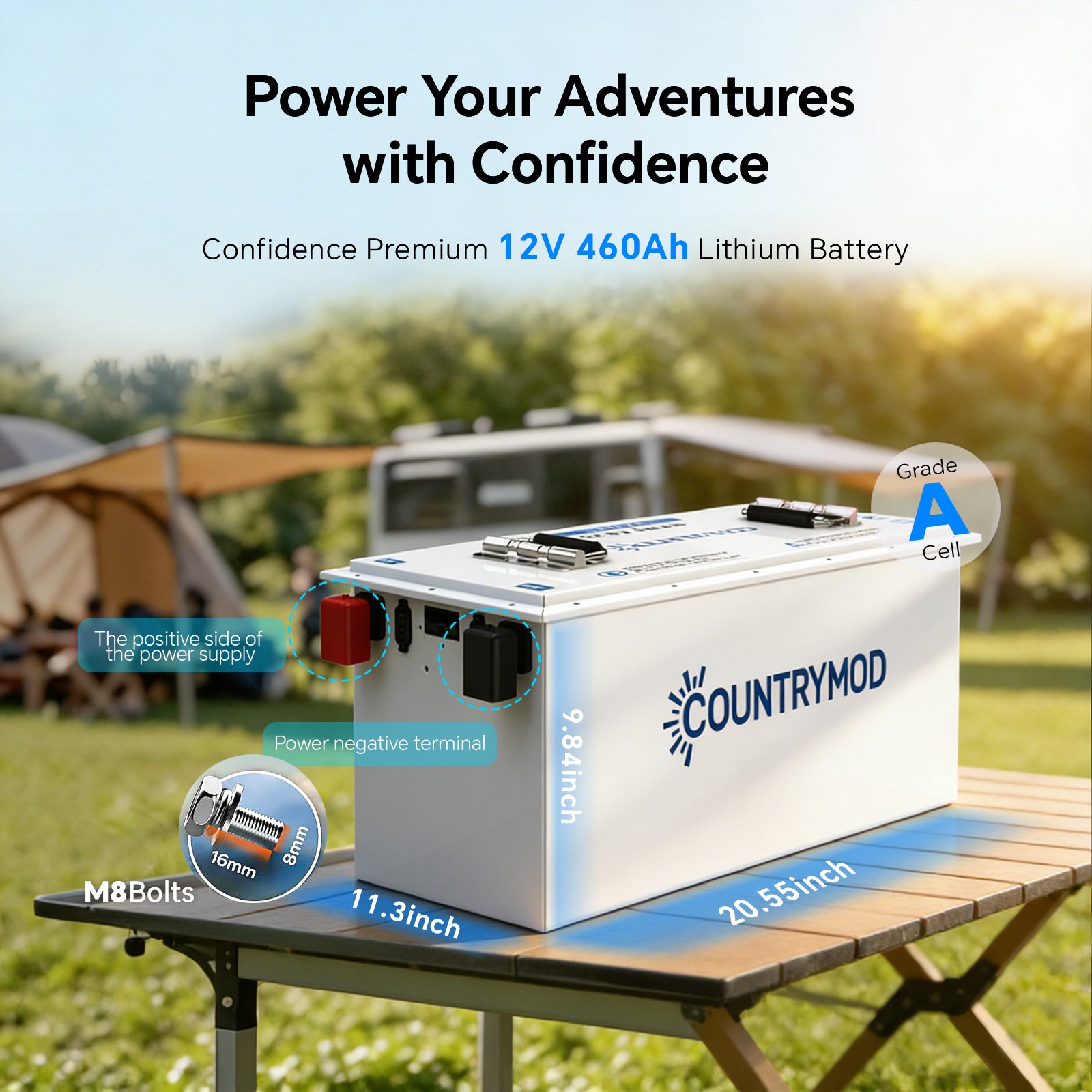

L522×W287×H250mm L 20.55"×W11.30"×H9.84" |

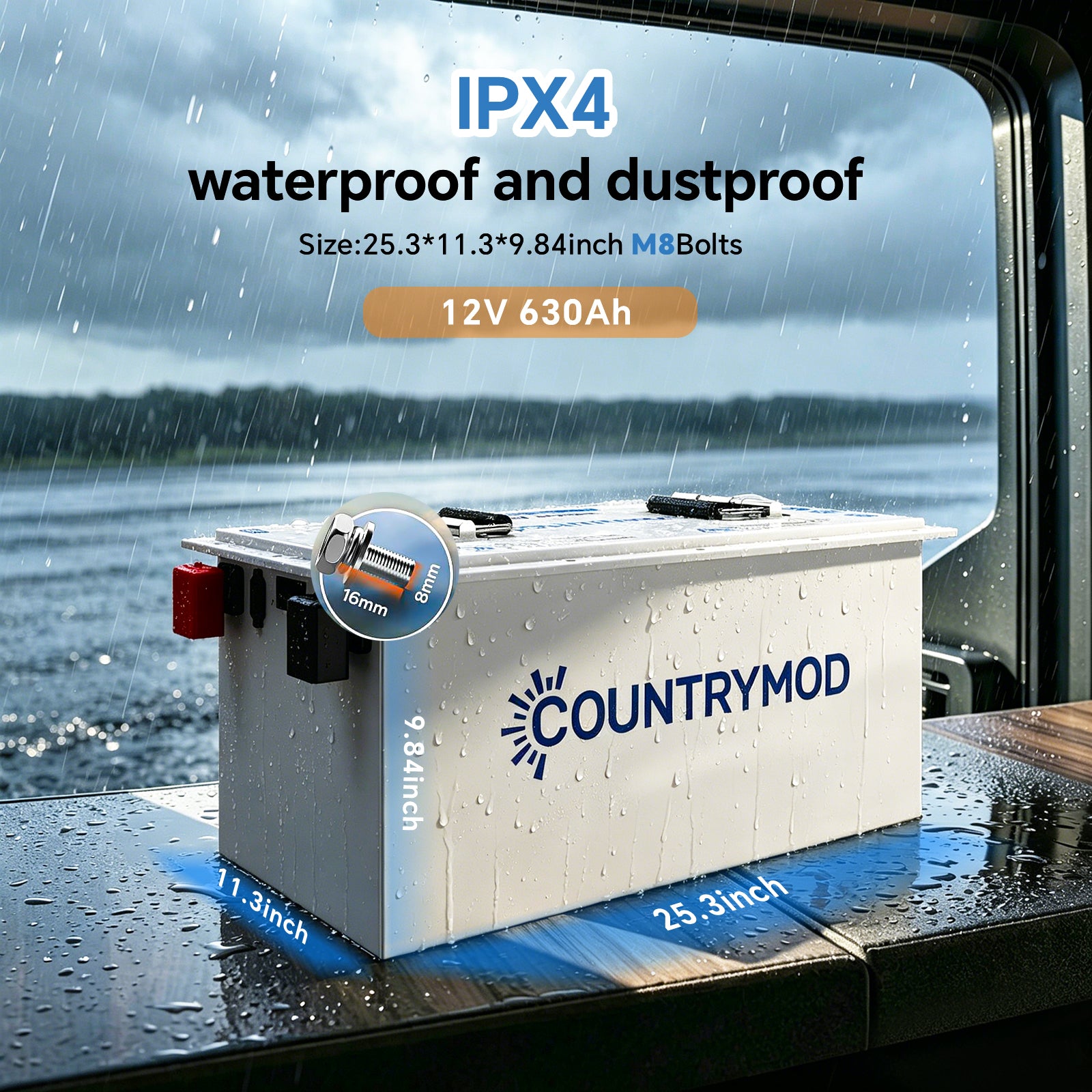

L642×W287×H250mm L25.28"×W11.30"×H9.84" |
| Weight | ~128 lbs(58kg) | ~150 lbs(68kg) |
| Color | White | White |
| IP Rating | IPX4 | IPX4 |
| Communication | Bluetooth | Bluetooth |
| Storage Temp | 0℃~45℃ (1 month @50% SOC) / 0℃~30℃ (6 months) | Same |
| Carton Packaging | Yes | Yes |
